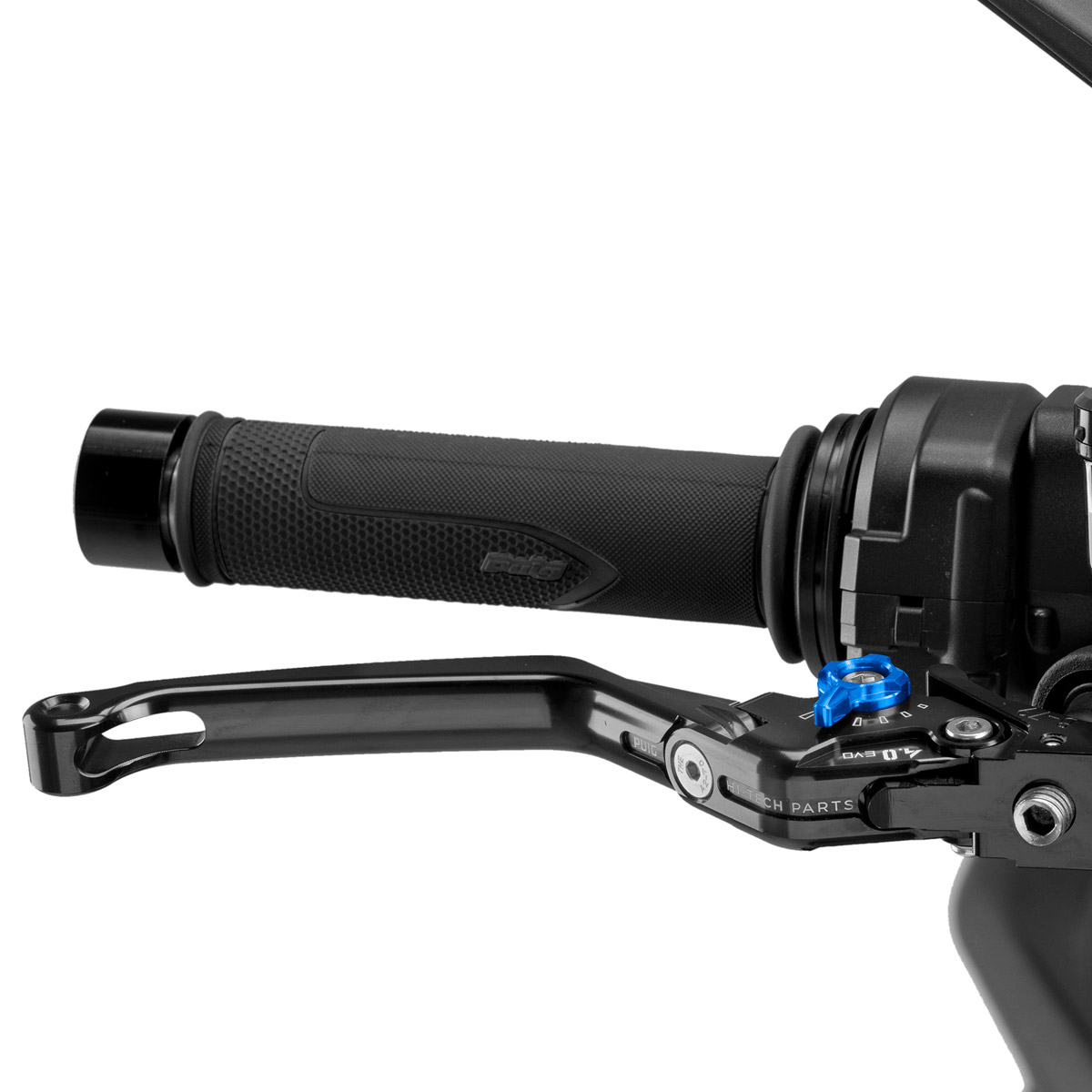

Folding brake or clutch levers 4.0 by Puig, foldable and adjustable, with specific adapter for each model (NOT INCLUDED).
Lever and adjuster colors can be combined.
Weight: 100g.
Length: 160mm.

IMPORTANT. BEFORE PURCHASING, PLEASE NOTE:
If you don't have Puig levers yet, you will need adapters specific for your bike model, one per lever.
Please specify your bike model and year to include the correct adapters.

The Puig 4.0 levers are the evolution of the previous 3.0 model, featuring new aesthetic and design improvements for a more dynamic and sporty touch.

Installation is recommended to be carried out by a specialist mechanic.

Brake lever installation adjustment process

Lift the front wheel to check it does not remain locked.

Adjust the braking pressure entry point with the adjustment screw (tightening advances the braking, loosening delays it). It's crucial to leave a safety margin to prevent the calipers from being under pressure and avoid brake lock. To ensure this margin, place a gauge (you can use a folded piece of paper) at the hardware stop and check the wheel is not locked.

Once adjusted, fix using the locking screw.
